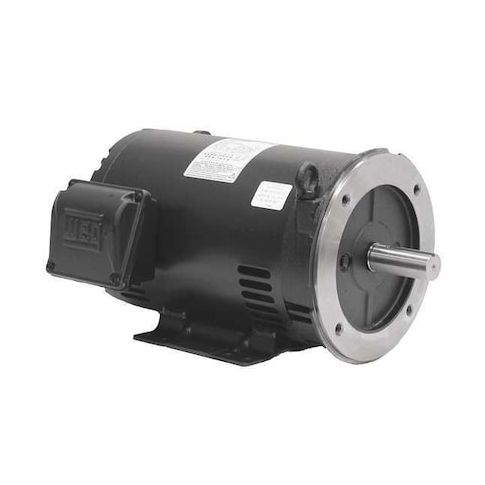

Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 1740 rpm Nameplate RPM MPN:00218OT3E145TC-S
Three-Phase General Purpose Motor, 2 HP, 143/5TC Frame, 230/460V AC Voltage, 1740 rpm Nameplate RPM
This 2 HP three-phase general purpose motor is designed for a wide range of industrial applications, including manufacturing, processing, and power generation. With a nameplate RPM of 1740 and a nominal efficiency of 86.5%, it provides reliable and efficient power in continuous duty cycles. Its open drip-proof motor enclosure design and rigid base mounting ensure easy installation and maintenance. Suitable for use in temperatures up to 40°C, this motor is ideal for applications such as pumps, fans, and conveyor systems, where high torque and reliability are required. Its CSA and UL certifications ensure compliance with industry standards.
Top product features:
- Three-phase design for efficient power distribution
- Open drip-proof motor enclosure for protection against dust and debris
- Ball bearings for smooth and quiet operation
Top product applications:
- Industrial manufacturing and production
- Pumping stations and water treatment plants
- Textile and fabric manufacturing
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1740 rpm, Frame 143/5TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.38/2.69 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 12.40
- Package Height: 9.70
- Package Weight: 41.45
Product info last updated on February 24, 2026 6:34pm UTC
Category: Motors
