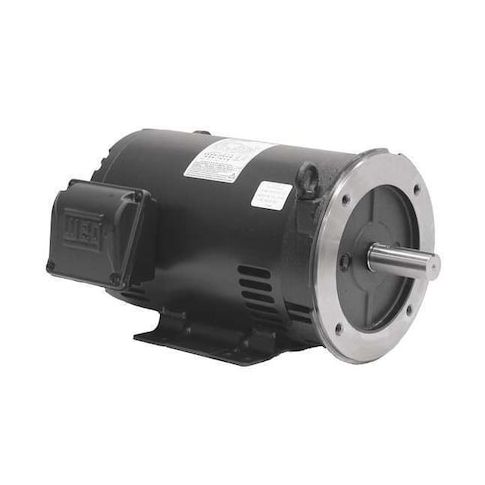

Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 575V AC Voltage, 1760 rpm Nameplate RPM MPN:00158OT3H145TC-S
Three-Phase General Purpose Motor, 1 1/2 HP, 143/5TC Frame, 575V AC Voltage, 1760 rpm Nameplate RPM
This high-performance 1.5 HP three-phase general purpose motor is designed for demanding applications requiring reliable and efficient operation. With a nameplate RPM of 1760 and a maximum ambient temperature of 40°C, it's ideal for use in industrial settings such as manufacturing facilities, warehouses, and processing plants. The motor's rigid base mounting type and steel frame ensure stable and durable operation, while its 86.5% nominal efficiency reduces energy costs and minimizes environmental impact. Suitable for continuous duty, this motor is a reliable choice for applications such as conveyor systems, pumps, and fans.
Top product features:
- Three-phase operation
- Open drip-proof motor enclosure design
- Ball motor bearings
Top product applications:
- Pumps and water treatment systems
- Conveyor belts and material handling equipment
- Air compressors and industrial machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1760 rpm, Frame 143/5TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.66 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 12.40
- Package Height: 10.10
- Package Weight: 45.15
Product info last updated on February 16, 2026 1:22am UTC
Category: Motors
