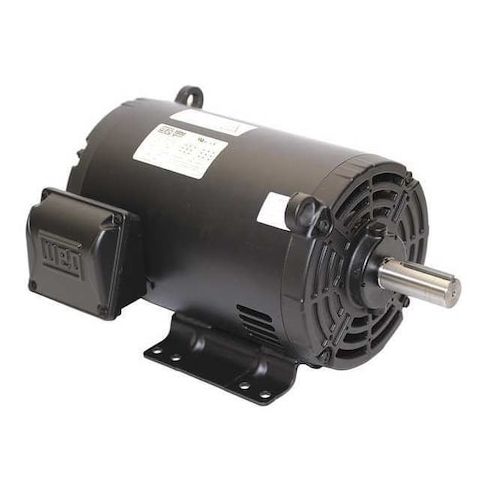

Three-Phase General Purpose Motor, 1 1/2 HP, 143/5T Frame, 230/460V AC Voltage MPN:00156OT3E143T-S
Three-Phase General Purpose Motor, 1 1/2 HP, 143/5T Frame, 230/460V AC Voltage
This high-performance 1.5 HP three-phase general purpose motor from Weg is designed for demanding applications that require reliability and efficiency. With a nameplate RPM of 3510, it delivers continuous duty performance in a wide range of industries, including manufacturing, oil and gas, and food processing. Its open drip-proof motor enclosure design and rigid base motor mounting ensure safe and stable operation, while its ball motor bearings and Class F insulation ensure long motor life. Suitable for use in environments up to 40 degrees C, this motor is an ideal solution for applications requiring high power and efficiency.
Top product features:
- Three-Phase operation allows for efficient use of electrical power in applications that require multiple phases.
- The Open Drip Proof motor enclosure design provides protection from dust and moisture while maintaining airflow for cooling.
- The Ball Motor Bearings ensure smooth and quiet operation, reducing vibration and wear on the motor.
Top product applications:
- Industrial automation and manufacturing
- Pumping systems and water treatment facilities
- Material handling and conveyor systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3510 rpm, Frame 143/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.70/1.85 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.60
- Package Width: 12.70
- Package Height: 9.70
- Package Weight: 33.00
Product info last updated on February 15, 2026 5:01pm UTC
Category: Motors
