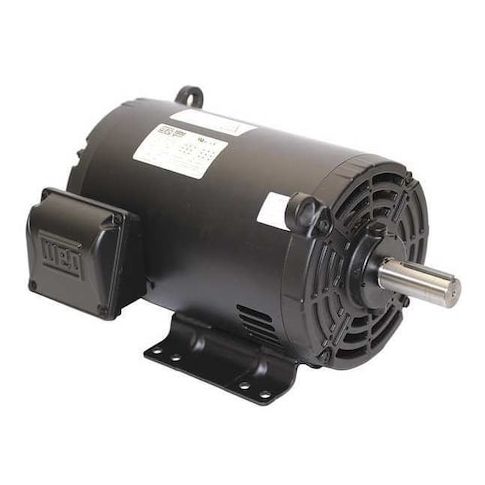

Three-Phase General Purpose Motor, 1 HP, 143/5T Frame, 230/460V AC Voltage, 1760 rpm Nameplate RPM MPN:00118OT3E143T-S
This three-phase general purpose motor is designed for reliable operation in a variety of applications, including industrial and commercial settings. With a 1 HP rating and 1760 rpm nameplate speed, it provides efficient power delivery for tasks such as pumping, conveying, and driving machinery. The motor's open drip-proof enclosure design and rigid base mounting type ensure secure and protected operation. Its high efficiency of 85.5% and continuous duty rating make it an ideal choice for demanding applications. Suitable for use in environments up to 40°C, this motor is a reliable solution for a range of industrial and commercial needs.
Top product features:
- Three-Phase AC Voltage Capability
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps
- Fans
- Conveyors
The WEG - 00118OT3E143T-S is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is commonly used in industrial and commercial settings for power transmission and pneumatics applications. It is designed to convert electrical energy into mechanical energy for use in a variety of applications such as manufacturing lines and HVAC systems.
Key Features of the WEG - 00118OT3E143T-S General Purpose Motor:
- CC Number: The unique identifier CC029A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
- Duty Cycle: The motor has a continuous duty cycle, which means it's intended for constant operation within its specifications.
- Frame: Its frame size is 143/5T conforming to standard specifications for compatibility with other equipment.
- Full Load Amps: Under full load conditions, the motor draws a maximum current of 3.02/1.51 A within specified limits.
- Inverter Rated: Yes – Intended for use with variable frequency drives that provide control over speed and torque within design parameters
- NEMA Premium Rated: Recognized for meeting specific environmental and energy efficiency standards
- Horsepower (HP): Rated with an output power of 1 HP based on standard testing conditions
- Motor Enclosure Design: Features an Open Drip Proof enclosure design which aims to protect internal components from certain environmental factors according to its design parameters
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.60
- Package Height: 9.50
- Package Weight: 35.80
