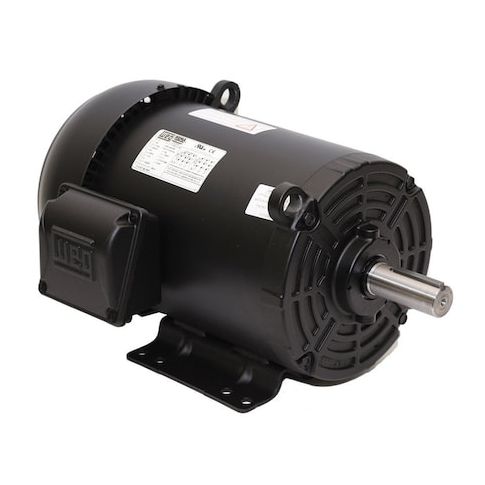

Three-Phase General Purpose Motor, 1 HP, 143/5T Frame, 1, 765 Nameplate RPM 13 9/16 in Overall Length MPN:00118ET3E143T-SG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G811241453
Three-Phase General Purpose Motor, 1 HP, 143/5T Frame, 1, 765 Nameplate RPM 13 9/16 in Overall Length
The Weg 1 HP three-phase general purpose motor is a reliable and efficient solution for various industrial applications. Its totally enclosed fan cooled design and steel frame ensure durability and longevity, while its rigid base mounting type provides stability and ease of installation. With a high efficiency rating of 85.5% and a maximum ambient temperature of 40 degrees C, this motor is ideal for use in manufacturing facilities, process plants, and other high-temperature environments. Suitable for applications such as conveyor systems, pumps, and compressors, this motor offers a cost-effective and low-maintenance solution for a wide range of industrial needs.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pump applications
- Conveyor belt drive applications
- Fan drive applications
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,765, Frame 143/5T, Voltage 190V AC, 220V AC, 230/460V AC, 380/415V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, 1,701-1,800, NEMA MG-1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.60
- Package Width: 12.00
- Package Height: 9.20
- Package Weight: 40.35
Product info last updated on February 12, 2026 11:03am UTC
Category: Motors
