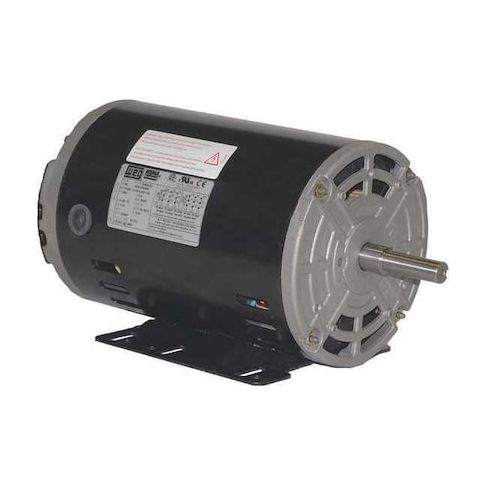

Three-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 1, 155 Nameplate RPM MPN:.5012OT3E56-S
Three-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 1, 155 Nameplate RPM
This 1/2 HP three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial processes, commercial equipment, and HVAC systems. Its 1,155 nameplate RPM provides efficient power delivery, while its 75.3% nominal efficiency minimizes energy consumption. The motor's open drip-proof enclosure and rigid base ensure reliable operation in various environments. Suitable for continuous duty, this motor is ideal for use in factories, warehouses, and other settings where high performance and durability are required. Its compact size and easy installation make it a convenient solution for many industrial and commercial applications.
Top product features:
- Three-Phase AC Voltage Capability
- Ball Motor Bearings for Smooth Operation
- Continuous Duty Capability for Reliable Performance
Top product applications:
- Pump applications where a moderate to high starting torque is required
- Conveyor systems where a high starting torque is required
- Fans and blowers where a high starting torque is required
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/2 HP, Nameplate RPM 1,155, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.06-1.87/0.934 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.3 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.20
- Package Width: 8.60
- Package Height: 9.00
- Package Weight: 22.00
Product info last updated on February 24, 2026 8:04pm UTC
Category: Motors
