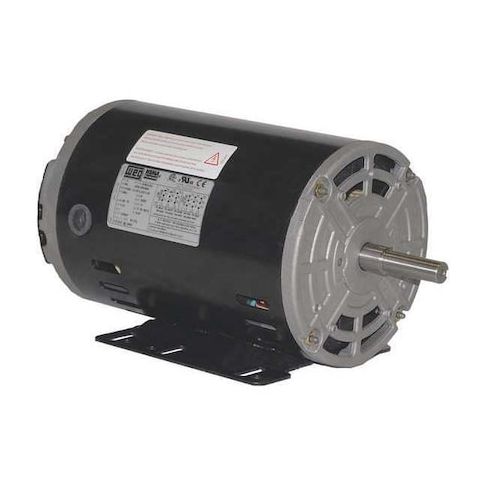

Three-Phase General Purpose Motor, 1/3 HP, 56 Frame, 208-230/460V AC Voltage, 3520 rpm Nameplate RPM MPN:.3336OT3E56-S
Three-Phase General Purpose Motor, 1/3 HP, 56 Frame, 208-230/460V AC Voltage, 3520 rpm Nameplate RPM
This Weg 1/3 HP three-phase general purpose motor is designed for a variety of applications, including industrial equipment, HVAC systems, and manufacturing processes. Its open drip-proof motor enclosure provides protection against dust and water, while its rigid base motor mounting ensures stable operation. With a nameplate RPM of 3520 and a maximum ambient temperature of 40°C, this motor is suitable for continuous duty in a range of environments. Its high efficiency and ball bearings make it a reliable choice for applications requiring consistent performance. Its compact size and durable construction make it ideal for a variety of industrial settings.
Top product features:
- Three-phase operation for increased power and efficiency
- Ball motor bearings for smooth and quiet operation
- Continuous duty rating for prolonged usage without overheating
Top product applications:
- Pumps and water treatment systems
- Industrial ventilation systems
- Conveyors and material handling equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/3 HP, Nameplate RPM 3520 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.35-1.22/0.610 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 69.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.10
- Package Width: 8.60
- Package Height: 8.80
- Package Weight: 17.60
Product info last updated on March 31, 2026 9:44am UTC
Category: Motors
