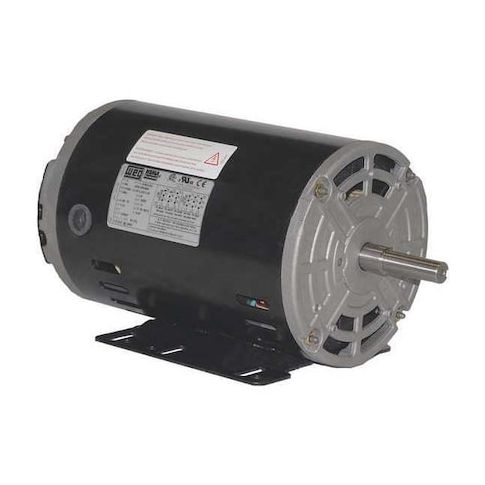

Three-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 3490 rpm Nameplate RPM MPN:.5036OT3E56-S
Three-Phase General Purpose Motor, 1/2 HP, 56 Frame, 208-230/460V AC Voltage, 3490 rpm Nameplate RPM
The Weg 1/2 HP three-phase general purpose motor is a reliable and efficient solution for various industrial applications. Suitable for use in environments with ambient temperatures up to 40°C, this motor features a rigid base mounting design and ball bearings for smooth operation. With a nameplate RPM of 3490, it provides high-speed performance in continuous duty applications. The motor's open drip-proof enclosure design and CSA/UL certification ensure safe and compliant operation. Its high efficiency of 73.4% minimizes energy consumption, making it an ideal choice for applications such as pumps, fans, and conveyor systems in industries like manufacturing and food processing.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip-proof motor enclosure design for protection from dust and moisture
- Ball motor bearings for smooth and durable operation
Top product applications:
- Pumps and Pumping Systems
- Conveyors and Material Handling Systems
- Power Tools and Equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/2 HP, Nameplate RPM 3490 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.79-1.62/0.811 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 73.4 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 8.70
- Package Height: 8.50
- Package Weight: 17.69
Product info last updated on February 2, 2026 1:18pm UTC
Category: Motors
