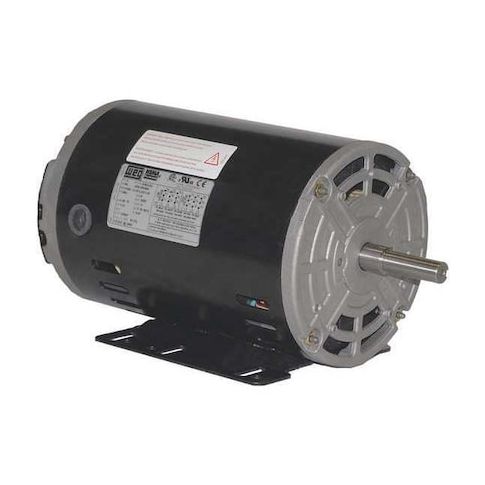

Three-Phase General Purpose Motor, 3/4 HP, 56H Frame, 208-230/460V AC Voltage MPN:.7512OT3E56-S
Three-Phase General Purpose Motor, 3/4 HP, 56H Frame, 208-230/460V AC Voltage
This 3/4 HP, three-phase general purpose motor from Weg is designed for heavy-duty applications that require continuous operation. With a rigid base mounting type and ball bearings, it provides reliable and efficient performance. The motor's open drip-proof enclosure design and steel frame ensure durability and protection from harsh environments. Suitable for use in industrial settings, such as manufacturing, assembly lines, and material handling systems, this motor offers high efficiency and a long lifespan. Its compact size and easy installation make it an ideal choice for a wide range of applications, including conveyor systems, pumps, and fans.
Top product features:
- Three-phase operation allows for efficient power distribution and motor performance
- Open drip-proof motor enclosure design provides protection against environmental contaminants
- Ball motor bearings ensure smooth and quiet operation, reducing wear and tear on the motor
Top product applications:
- Industrial Automation
- Pumps and Pumping Systems
- Conveyor Systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 1160 rpm, Frame 56H, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.78-2.52/1.26 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 81.7 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.20
- Package Width: 8.50
- Package Height: 9.00
- Package Weight: 36.62
Product info last updated on February 14, 2026 4:27pm UTC
Category: Motors
