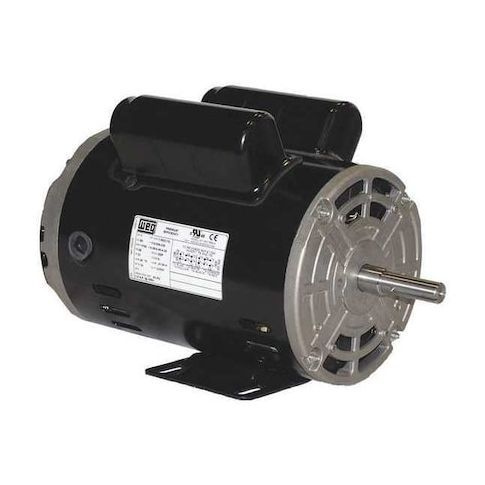

Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 48 Frame MPN:.5018OT1B48-S
Capacitor-Start/Run General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 48 Frame
The Weg Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for various applications. Suitable for use in single-phase systems, this motor offers a high level of performance and durability. With a nameplate RPM of 1,730 and a motor service factor of 1.25, it can handle continuous duty cycles in a wide range of environments. The motor's open drip-proof enclosure design makes it ideal for use in areas where exposure to dust and moisture is a concern. Perfect for use in commercial and industrial settings, this motor is a great choice for applications such as pumps, fans, and conveyor systems.
Top product features:
- Capacitor-start/run motor design provides efficient starting and running capabilities.
- Single-phase operation allows for simple installation and reduced complexity.
- Open drip-proof enclosure design protects the motor from dust and water in harsh environments.
Top product applications:
- Pump for small water treatment plants
- Sewage treatment plants
- Industrial laundry equipment
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/2 hp HP, Nameplate RPM 1,730 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.9/3.0-2.4 A, 48 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.60
- Package Width: 8.60
- Package Height: 9.90
- Package Weight: 23.80
Product info last updated on March 1, 2026 10:32am UTC
Category: Motors
