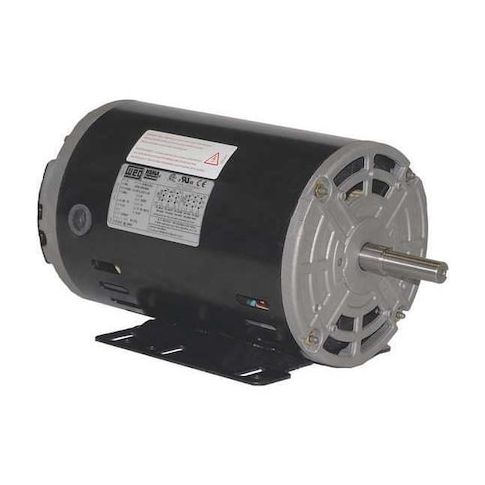

Three-Phase General Purpose Motor, 3/4 HP, 56 Frame, 208-230/460V AC Voltage, 3485 rpm Nameplate RPM MPN:.7536OT3E56-S
Three-Phase General Purpose Motor, 3/4 HP, 56 Frame, 208-230/460V AC Voltage, 3485 rpm Nameplate RPM
This 3/4 HP, three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial settings. Its open drip-proof motor enclosure design provides protection from dust and moisture, while the rigid base motor mounting type ensures stable operation. With a maximum ambient temperature of 40 degrees C, this motor can handle demanding environments. Its high efficiency and continuous duty rating make it ideal for applications requiring sustained performance. Suitable for use in factories, warehouses, and other industrial settings, this motor is a reliable choice for powering machinery and equipment.
Top product features:
- Three-Phase General Purpose Motor, 3/4 HP, 56 Frame, 208-230/460V AC Voltage, 3485 rpm
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps and Pumping Systems
- Industrial Conveyors and Material Handling Systems
- Textile Machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 3485 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.52-2.28/1.14 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 76.8 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 8.70
- Package Height: 9.20
- Package Weight: 10.80
Product info last updated on February 4, 2026 1:29am UTC
Category: Motors
