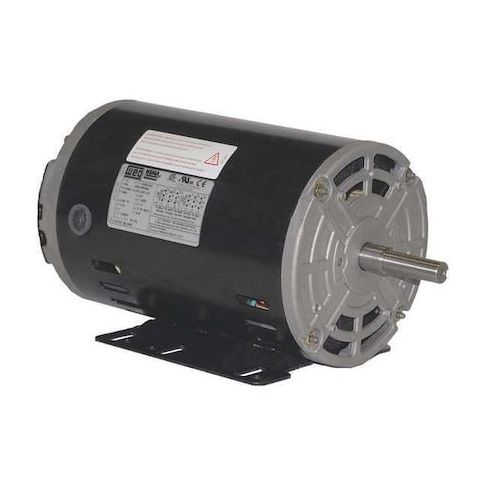

Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 208-230/460V AC Voltage, 3525 rpm Nameplate RPM MPN:.2536OT3E56-S
Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 208-230/460V AC Voltage, 3525 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/4 HP, Nameplate RPM 3525 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.01-0.918/0.459 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 65.6 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.40
- Package Width: 8.90
- Package Height: 9.10
- Package Weight: 17.34
Product info last updated on January 17, 2026 5:02am UTC
Category: Motors
