General Purpose Motor, 1 HP, 56 Frame MPN:00118OT1B56-S
General Purpose Motor, 1 HP, 56 Frame

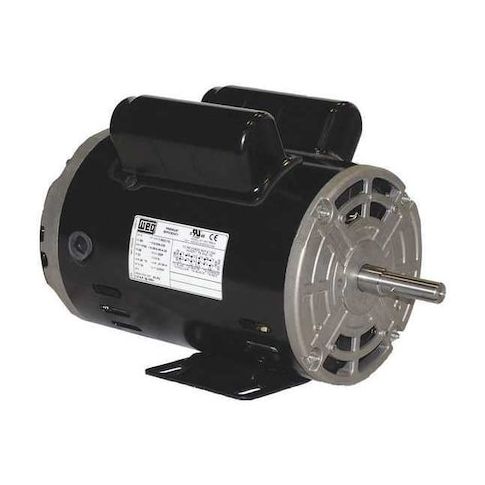

The Weg 1 HP General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in environments with a maximum ambient temperature of 40°C, this motor is ideal for continuous duty cycles in industrial settings. Its open drip-proof design provides protection against dust and water ingress, making it a great choice for applications in harsh environments. With a 1.15 service factor, this motor can handle demanding tasks with ease. Its compact 56 frame size makes it easy to integrate into existing systems, and its single-phase design simplifies installation and maintenance.
Top product features:
- Single Phase Design
- Capacitor-Start/Run Motor Design
- Open Drip Proof Motor Enclosure Design
Top product applications:
- Pump applications due to its high torque and continuous duty cycle
- Conveyor systems requiring a reliable and efficient motor
- Fans and blowers in commercial and industrial settings
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 9.0/4.9-4.5 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.00
- Package Width: 8.70
- Package Height: 10.00
- Package Weight: 38.00
Product info last updated on March 11, 2026 11:43pm UTC
Category: Motors
