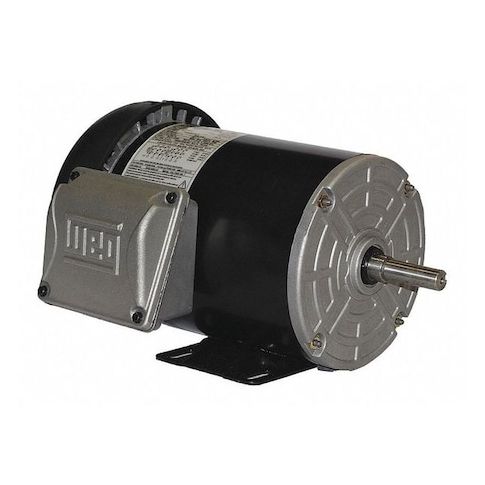

Three-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 3600 Nameplate RPM MPN:00236ET3E56-S
Three-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 3600 Nameplate RPM
This 2 HP, 56H frame, three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial manufacturing, material handling, and power generation. Its totally enclosed fan cooled motor enclosure design and rigid base mounting type provide reliable and efficient operation in harsh environments. With a nameplate RPM of 3520 and a service factor of 1.15, this motor is suitable for continuous duty applications. Its high efficiency and robust design make it an ideal choice for applications requiring high torque and reliability, such as conveyor systems, pumps, and fans.
Top product features:
- Three-Phase General Purpose Motor design provides continuous duty operation
- Totally Enclosed Fan Cooled Motor Enclosure Design helps to reduce noise and improve cooling efficiency
- Ball Motor Bearings ensure smooth and reliable motor operation
Top product applications:
- Industrial conveyor belts
- Pumps and compressors
- Manufacturing machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3520 rpm, Frame 56H, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.94/2.47 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.70
- Package Width: 11.60
- Package Height: 10.60
- Package Weight: 42.00
Product info last updated on March 10, 2026 9:48am UTC
Category: Motors
