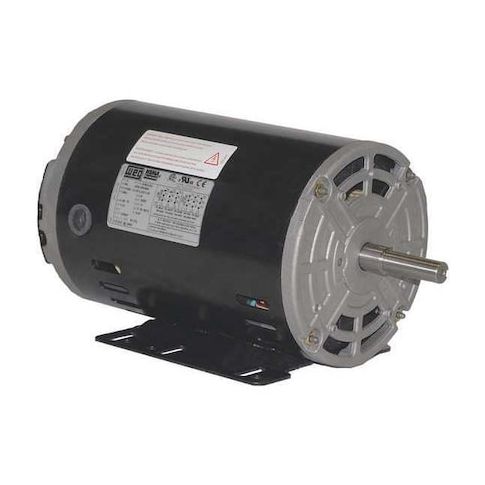

Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 208-230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:.2518OT3E56-S
Three-Phase General Purpose Motor, 1/4 HP, 56 Frame, 208-230/460V AC Voltage, 1765 rpm Nameplate RPM
This 1/4 HP three-phase general purpose motor is designed for a wide range of applications, including industrial machinery, material handling, and HVAC systems. Its 56 frame size and open drip-proof motor enclosure make it suitable for use in harsh environments. With a nameplate RPM of 1765 and a service factor of 1.35, this motor provides reliable and efficient operation. Its rigid base mounting type and ball bearings ensure stable and long-lasting performance. Suitable for continuous duty, this motor is ideal for applications where high torque and reliability are required, such as in conveyor systems, pumps, and fans.
Top product features:
- Three-phase operation for high efficiency and reliability
- Open drip-proof motor enclosure design for protection against dust and water
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial Automation
- Pumps and Pump Systems
- Manufacturing Lines
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/4 HP, Nameplate RPM 1765 rpm, Frame 56, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.18-1.07/0.533 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 69.5 Percent, Continuous Duty, 1701-1800, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.90
- Package Width: 8.70
- Package Height: 8.40
- Package Weight: 18.60
Product info last updated on February 26, 2026 5:04am UTC
Category: Motors
