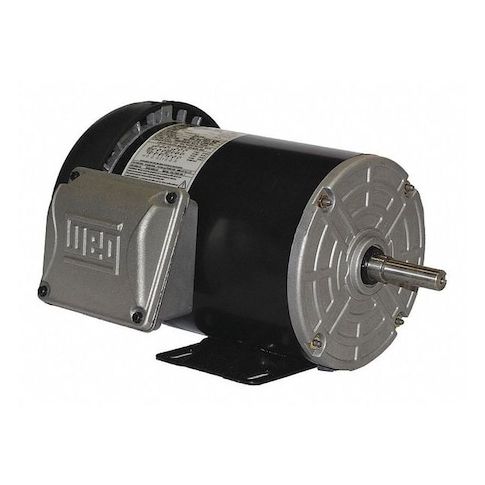

Three-Phase General Purpose Motor, 1 HP, 56 Frame, 230/460V AC Voltage, 3435 rpm Nameplate RPM MPN:00136ET3EW56-S
Three-Phase General Purpose Motor, 1 HP, 56 Frame, 230/460V AC Voltage, 3435 rpm Nameplate RPM
This 1 HP three-phase general purpose motor is designed for a wide range of industrial and commercial applications, including pumps, fans, and conveyor systems. With a nameplate RPM of 3435 and a maximum ambient temperature of 40 degrees C, this motor can operate in demanding environments. The totally enclosed fan-cooled design and steel frame ensure durability and reliability, while the 78.5% nominal efficiency reduces energy costs. Suitable for continuous duty, this motor is ideal for applications requiring consistent performance and minimal downtime, including manufacturing, processing, and material handling facilities.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan-cooled motor enclosure for protection from dust and debris
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 3435 rpm, Frame 56, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.00/1.50 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 78.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 12.20
- Package Height: 9.50
- Package Weight: 23.60
Product info last updated on February 2, 2026 12:33pm UTC
Category: Motors
