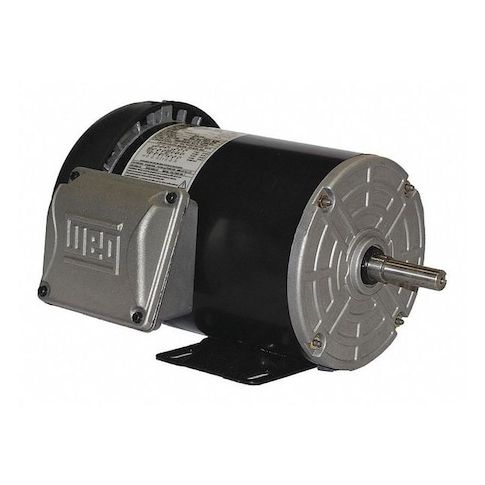

Three-Phase General Purpose Motor, 1 HP, 56 Frame, 575V AC Voltage, 3435 rpm Nameplate RPM MPN:00136ET3HW56-S
Three-Phase General Purpose Motor, 1 HP, 56 Frame, 575V AC Voltage, 3435 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 3435 rpm, Frame 56, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.2 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 78.5 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.30
- Package Width: 12.50
- Package Height: 9.30
- Package Weight: 22.80
Product info last updated on March 1, 2026 4:18am UTC
Category: Motors
