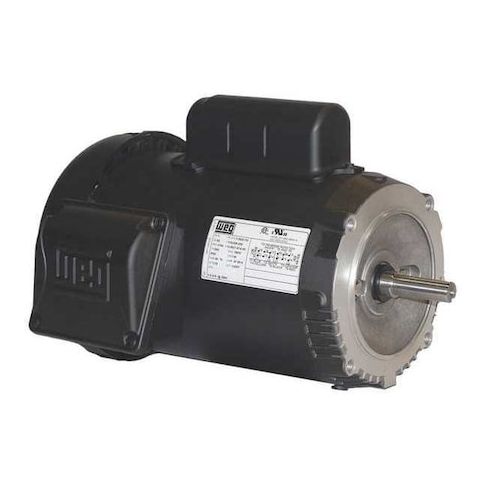

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:.5036ES1BW56CFL-S
Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1/2 hp Capacitor-Start General Purpose Motor from Weg is a reliable and efficient solution for a variety of applications. Suitable for use in 115/208-230V AC environments, it operates at 3,500 RPM and features a 56C frame. The motor is designed for continuous duty cycles and can withstand temperatures up to 40°C. Its totally enclosed fan-cooled design ensures optimal performance and longevity. Ideal for use in industrial settings, such as manufacturing facilities, warehouses, and distribution centers, this motor provides a cost-effective and reliable solution for powering machinery and equipment. Its compact size and low maintenance requirements make it a convenient choice.
Top product features:
- Totally Enclosed Fan Cooled design provides protection from dust and moisture
- Single Phase Motor Design allows for efficient operation on a single phase power supply
- Continuous Duty Cycle enables the motor to operate for extended periods without overheating
Top product applications:
- Pump applications in water treatment plants
- Conveyor systems in manufacturing facilities
- Fans in HVAC systems
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 3,500 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 7.0/3.9-3.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.40
- Package Width: 11.60
- Package Height: 10.10
- Package Weight: 23.20
Product info last updated on February 3, 2026 9:57am UTC
Category: Motors
