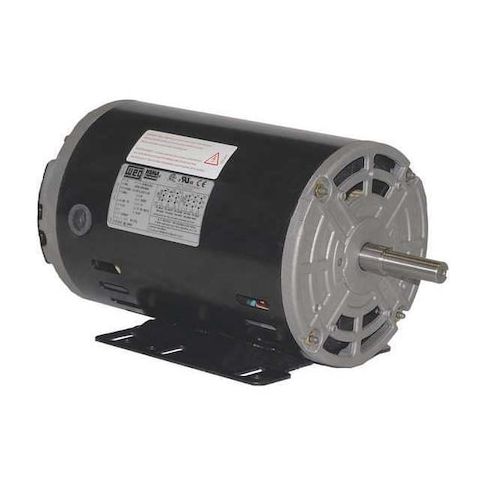

Three-Phase General Purpose Motor, 1 HP, 56 Frame, 230/460V AC Voltage, 3475 rpm Nameplate RPM MPN:00136OT3E56-S
Three-Phase General Purpose Motor, 1 HP, 56 Frame, 230/460V AC Voltage, 3475 rpm Nameplate RPM
This 1 HP, 56 frame, three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial and commercial use. With a high efficiency rating of 77% and a nameplate RPM of 3475, it provides reliable and consistent performance. The open drip-proof motor enclosure design and rigid base motor mounting type make it ideal for use in harsh environments. Suitable for continuous duty, this motor is perfect for applications such as pumps, fans, and compressors, and meets CSA and UL standards for safety and quality. It's also easy to ship and store due to its compact size.
Top product features:
- Three-Phase General Purpose Motor
- Operates at a speed of 3475 rpm
- Has a rigid base motor mounting type for secure installation
Top product applications:
- Pumps and water treatment systems
- Industrial fans and blowers
- Conveyor systems and material handling equipment
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1 HP, Nameplate RPM 3475 rpm, Frame 56, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.02/1.51 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 77 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Conduit Box
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.10
- Package Width: 8.60
- Package Height: 9.00
- Package Weight: 21.80
Product info last updated on January 27, 2026 4:56pm UTC
Category: Motors
