Close-Coupled Pump Motor, 7-1/2 HP MPN:00736ET3E184JP-W22

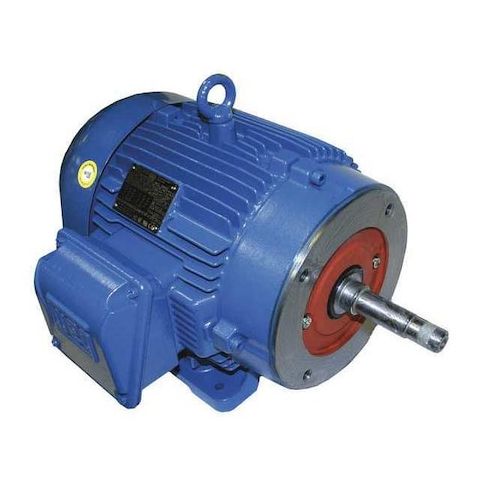

Close-Coupled Pump Motor, 7-1/2 HP
The Weg Close-Coupled Pump Motor is a reliable and efficient solution for a wide range of applications, including industrial and commercial settings. With 7-1/2 HP of power and a continuous duty cycle, this motor can handle demanding tasks with ease. Its compact design and exterior conduit box location make it ideal for space-constrained installations. The motor's inverter rating of 1000:1 ensures smooth operation with variable frequency drives, while its Class F insulation and 3-year manufacturer's warranty provide added peace of mind. Suitable for applications such as water treatment, chemical processing, and HVAC systems, this motor is a reliable choice for any industry.
Top product features:
- Close-coupled design for reduced vibration and improved performance
- Inverter-rated for use with variable frequency drives
- Continuous duty cycle for high-temperature applications
Top product applications:
- Water treatment plant
- Industrial process cooling system
- Pumping station for municipal water supply
Close-Coupled Pump Motor, Body Dia. 9.3 in, Bolt Circle Dia. 5 7/8 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 182/4JP, Hz 60 Hz, Full Load Amps 19.4-17.5/8.7, Full Load Amps @ 50Hz 19.4-17.5/8.7, Height 9 3/8 in, HP 7 1/2, HP @ 50Hz 5 1/2, 7 1/2, Includes Base, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 13 1/8 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.00
- Package Width: 20.00
- Package Height: 16.00
- Package Weight: 168.00
Product info last updated on February 4, 2026 12:48am UTC
Category: Motors
