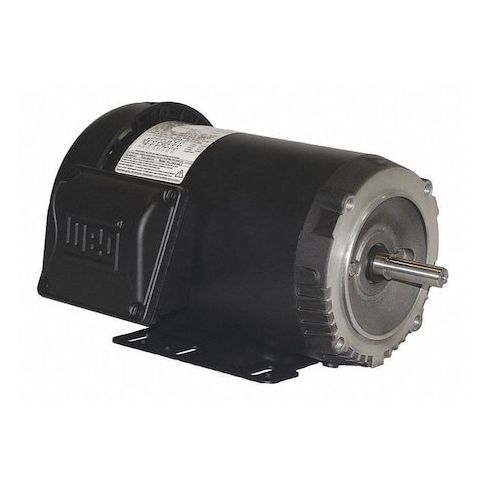

Three-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 3520 rpm Nameplate RPM MPN:00236ET3E56C-S
Three-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 3520 rpm Nameplate RPM
This 2 HP three-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. With a totally enclosed fan cooled motor enclosure and rigid base mounting, it provides reliable and efficient operation in demanding environments. The motor's 3520 rpm nameplate speed and 85.5% nominal efficiency make it suitable for continuous duty applications. Its CSA and UL certifications ensure compliance with safety standards. Perfect for use in manufacturing, material handling, and other industries, this motor offers a cost-effective solution for heavy-duty operations. Its compact size and durable design make it a valuable addition to any facility.
Top product features:
- Three-phase operation for increased power and efficiency
- Totally enclosed fan cooled motor enclosure for reduced heat and noise
- Ball motor bearings for smooth and durable operation
Top product applications:
- Industrial conveyor systems
- Pumps and fluid handling systems
- Machine tools and manufacturing equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3520 rpm, Frame 56HC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.94/2.47 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 11.70
- Package Height: 9.90
- Package Weight: 44.10
Product info last updated on February 22, 2026 5:17am UTC
Category: Motors
