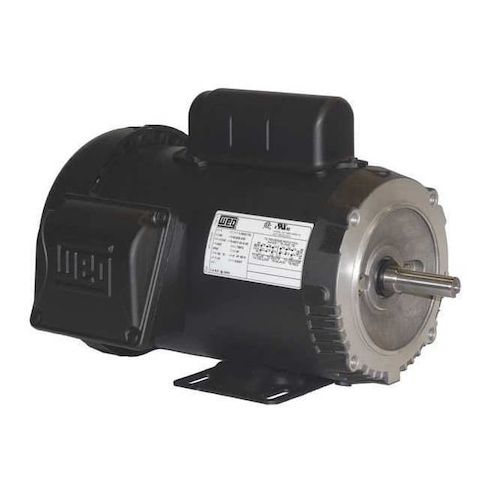

Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:00118ES1B56C-S
Capacitor-Start General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame
This 1 hp Capacitor-Start General Purpose Motor from Weg is designed for reliable operation in a variety of applications. Suitable for use in 115/208-230V AC environments, it features a 56C frame and a nameplate RPM of 1,745. With a continuous duty cycle and no thermal protection, this motor is ideal for applications where consistent operation is crucial. Its totally enclosed fan-cooled design ensures efficient cooling and reduced maintenance. The motor's compact size and lightweight design make it easy to install and integrate into existing systems, making it a versatile choice for a range of industries and applications.
Top product features:
- Single Phase Motor Design
- Totally Enclosed Fan Cooled Motor Enclosure
- 60 Hz Motor Operation
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,745 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 13.6/7.5-6.8 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 11.70
- Package Height: 11.20
- Package Weight: 37.90
Product info last updated on March 7, 2026 8:58am UTC
Category: Motors
