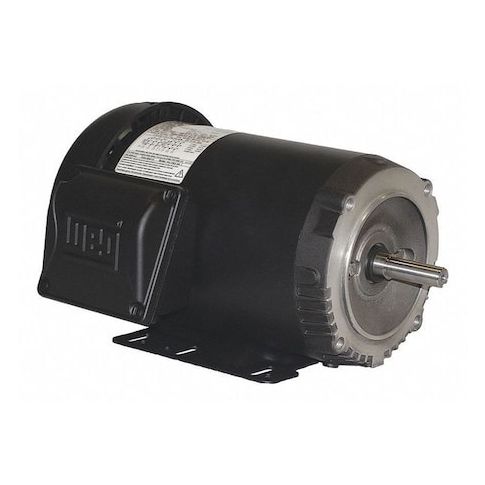

Three-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 3435 rpm Nameplate RPM MPN:00136ET3EW56C-S
This 1 HP three-phase general purpose motor from Weg is designed for a variety of applications requiring high reliability and efficiency. Suitable for use in industrial settings, it features a totally enclosed fan-cooled motor enclosure and rigid base mounting for secure installation. With a nameplate RPM of 3435 and a maximum ambient temperature of 40°C, this motor can handle demanding conditions. Its continuous duty rating and CSA and UL certification ensure compliance with industry standards. Ideal for use in factories, processing plants, and other industrial facilities, this motor provides reliable and efficient operation.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Pumps and water treatment systems
- Fans and ventilation systems
- Conveyors and material handling equipment
The WEG - 00136ET3EW56C-S is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This type of motor is widely used in industrial and commercial settings for power transmission and pneumatics applications. It converts electrical energy into mechanical energy to operate different types of machinery, making it versatile across various sectors from manufacturing lines to HVAC systems.
Key Features of the WEG - 00136ET3EW56C-S General Purpose Motor:
- CC Number: The unique identifier assigned by EASA (Electrical Apparatus Service Association) for tracking based on design, specifications, and performance characteristics.
- Duty Cycle: The continuous duty cycle is a measure of the motor's potential operation time without needing to rest or cool down.
- Frame: A size 56C frame houses and supports the internal parts conforming to standard specifications for compatibility and interchangeability.
- Full Load Amps: Draws a maximum current of 3.00/1.50 A when operating at full capacity, which is important for determining power supply requirements.
- Inverter Rated: Designed to be compatible with a variable frequency drive, which can provide control over speed and torque depending on the application.
- NEMA Premium(R) Rated: Acknowledged as meeting certain environmental standards making it an eco-friendly choice for industry professionals
- Motor Mounting Position & Type: Can be mounted at various angles using a rigid base, offering potential flexibility depending on the specific use scenario
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.20
- Package Height: 9.50
- Package Weight: 22.80
