Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame MPN:00136ES1B56C-S

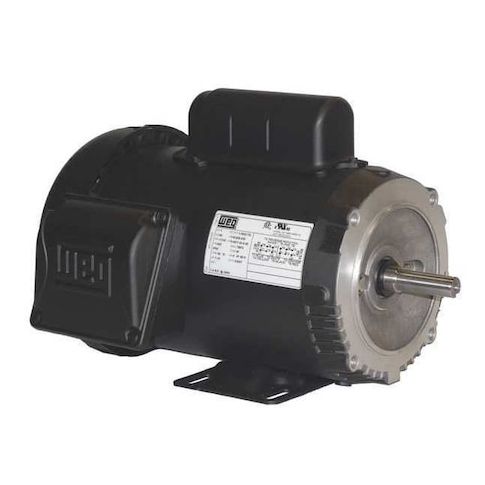

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/208-230V AC Voltage, 56C Frame
The Weg Capacitor-Start/Run General Purpose Motor is a reliable and efficient solution for a wide range of applications, including industrial and commercial settings. With a 1 hp rating and 3,500 RPM, this motor is perfect for use in fans, pumps, and other equipment that requires a consistent and steady power output. Its totally enclosed fan-cooled design ensures safe operation in high-temperature environments, and its single-phase design makes it easy to integrate into existing systems. Suitable for use at 115/208-230V AC, this motor is a versatile and cost-effective solution for any business or industry that requires a reliable motor.
Top product features:
- Totally Enclosed Fan Cooled motor design allows for efficient heat dissipation in harsh environments.
- Capacitor-Start/Run motor design enables smooth and efficient starting and running of the motor.
- Continuous duty cycle capability allows the motor to operate for extended periods without interruption.
Top product applications:
- Pump applications
- Industrial conveyor systems
- Fans and blowers
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 3,500 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 10.1/5.6-5.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.10
- Package Width: 11.90
- Package Height: 11.20
- Package Weight: 33.50
Product info last updated on February 2, 2026 12:13pm UTC
Category: Motors
