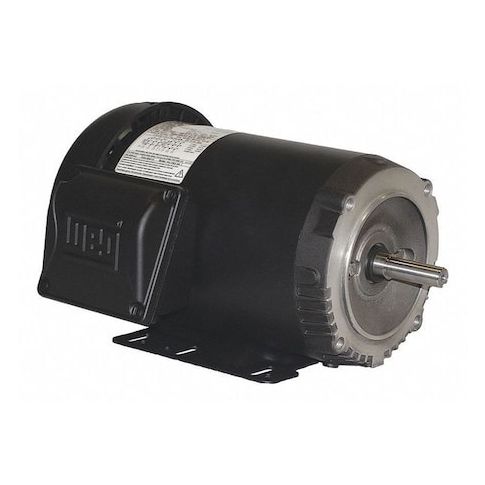

Three-Phase General Purpose Motor, 1 HP, 56C Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:00118ET3E56C-S

• Here is the revised description:

  The WEG - 00118ET3E56C-S is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is primarily used in industrial and commercial settings for power transmission and pneumatics applications. It efficiently converts electrical energy into mechanical energy to operate different types of machinery, making it versatile across various sectors from manufacturing lines to HVAC systems.

  Key Features of the WEG - 00118ET3E56C-S General Purpose Motor:


  • CC Number: The unique identifier CC029A assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: The product has a continuous duty cycle, which is indicative of its designed operation within specified industrial applications.
  • Frame: The 56C frame houses and supports the internal parts conforming to standard specifications for compatibility.
  • Full Load Amps: At full capacity, the product draws a maximum current of 2.94/1.47 A as per its specifications.
  • Inverter Rated: This product is compatible with being powered by a variable frequency drive for potential control over speed and torque
  • NEMA Premium(R) Rated: Meets certain environmental and energy efficiency standards making it an eco-friendly choice for industry professionals
  • Motor Service Factor: The motor has a service factor rating of 1.15, which indicates it's designed tolerance for temporary overload as per manufacturer's specifications.
  • Voltage Compatibility: The motor is rated for operation within specific voltage ranges including but not limited to
  • 200-230/440V AC, 208-220/440V AC,208-230/460V AC up to 230/460V AC
