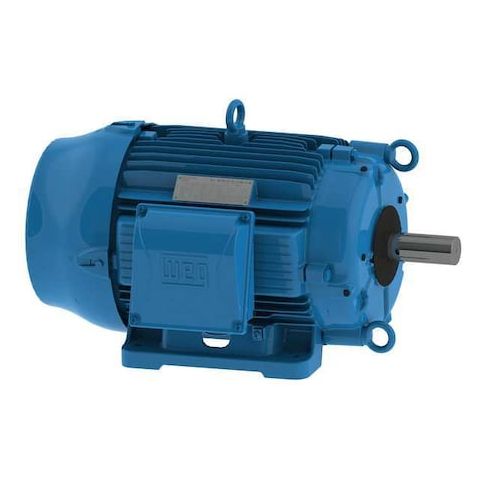

Cooling Tower Motor, Three Phase, 30 HP, 1, 765 Nameplate RPM, 230/460V AC, 284/6T Frame MPN:03018ET3ECT286TF1-W2
Cooling Tower Motor, Three Phase, 30 HP, 1, 765 Nameplate RPM, 230/460V AC, 284/6T Frame
This 30 HP three-phase cooling tower motor is designed for heavy-duty applications, providing efficient and reliable performance in a variety of environments. With a 1,765 RPM nameplate speed and 230/460V AC voltage, this motor is suitable for large cooling towers, HVAC systems, and industrial processes. Its totally enclosed fan-cooled design ensures long motor life and easy maintenance. The motor's cast iron frame and ball bearings provide durability and smooth operation. Ideal for use in high-temperature applications, this motor can operate in ambient temperatures up to 40°C, making it a reliable choice for demanding cooling tower applications.
Top product features:
- Totally Enclosed Fan Cooled design for improved motor protection and reliability
- Ball bearings for smooth and quiet operation
- Cast Iron frame material for added durability and resistance to corrosion
Top product applications:
- HVAC systems for large buildings
- Industrial manufacturing processes
- Water treatment facilities
Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 30 hp HP, 1,765 RPM Nameplate RPM, 284-6T Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 70.2/35.1 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position All Angle, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.25 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 7/8 in, Shaft Length 4 5/8 in, Length Less Shaft 23 5/16 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.30
- Package Width: 23.00
- Package Height: 18.00
- Package Weight: 453.00
Product info last updated on February 12, 2026 2:17pm UTC
Category: Motors
