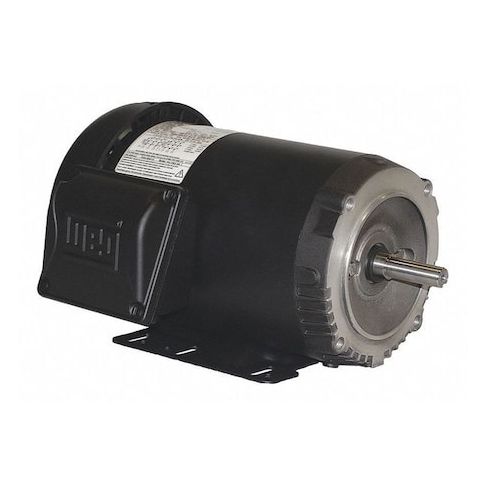

Three-Phase General Purpose Motor, 1 HP, 56HC Frame, 230/460V AC Voltage, 1, 145 Nameplate RPM MPN:00112ET3E56C-S
Three-Phase General Purpose Motor, 1 HP, 56HC Frame, 230/460V AC Voltage, 1, 145 Nameplate RPM
Boost your industrial operations with the reliable Weg Three-Phase General Purpose Motor. Designed for continuous duty, this 1 HP motor delivers efficient performance with a nominal efficiency of 82.5 percent. Its totally enclosed fan cooled motor enclosure design ensures reliable operation in harsh environments, while its rigid base motor mounting type provides stable installation. Suitable for applications such as conveyor systems, pumps, and fans, this motor's compact 56HC frame and 230/460V AC voltage make it a versatile choice for a wide range of industries, including manufacturing, oil and gas, and food processing.
Top product features:
- Three-phase operation for efficient power usage
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for reduced friction and increased motor lifespan
Top product applications:
- Industrial conveyor belt systems
- Pump and fan drives in HVAC systems
- Powering machinery in manufacturing plants
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,145, Frame 56HC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.16/1.58 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.90
- Package Width: 11.80
- Package Height: 10.40
- Package Weight: 42.05
Product info last updated on February 20, 2026 12:45pm UTC
Category: Motors
