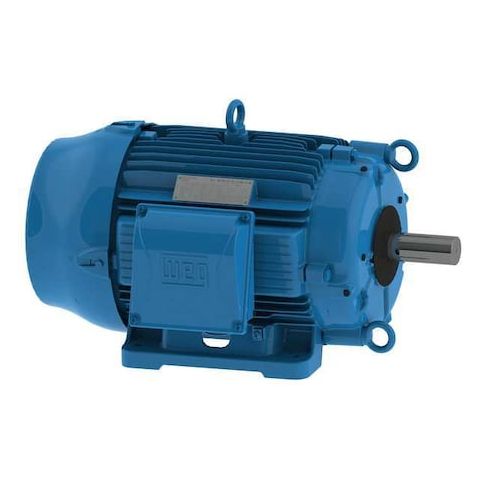

Cooling Tower Motor, Three Phase, 1 1/2 HP, 1, 755 Nameplate RPM, 200V AC, 143/5T Frame MPN:00158ET3PCT145TF1-W2
Cooling Tower Motor, Three Phase, 1 1/2 HP, 1, 755 Nameplate RPM, 200V AC, 143/5T Frame
This 1.5 HP three-phase cooling tower motor is designed for high-performance applications in industrial and commercial settings. With a nameplate RPM of 1,755 and a 143-5T frame, this motor provides reliable and efficient operation in a variety of cooling tower systems. Its totally enclosed fan-cooled design and rigid base mounting ensure long-lasting durability and easy installation. Suitable for use in temperatures up to 40°C, this motor is ideal for applications in hot and humid environments, such as data centers, hospitals, and manufacturing facilities. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled for efficient heat dissipation
- Three Phase for high power handling
- Ball Bearings for smooth and long-lasting motor operation
Top product applications:
- Cooling towers in industrial facilities
- Industrial air conditioning systems
- Large commercial buildings with high cooling demands
Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 1 1/2 hp HP, 1,755 RPM Nameplate RPM, 143-5T Frame, CW/CCW Motor Shaft Rotation, 200V AC Voltage, 4.7 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position All Angle, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.25 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 7/8 in, Shaft Length 2 1/4 in, Length Less Shaft 11 1/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 12.60
- Package Height: 9.60
- Package Weight: 52.05
Product info last updated on February 20, 2026 1:50am UTC
Category: Motors
