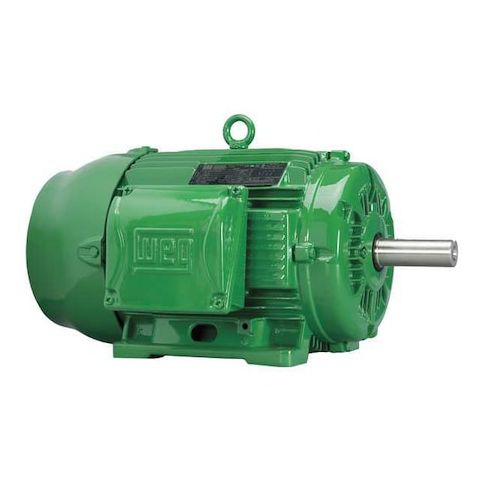

Three-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM MPN:00236EG3E145T-W22
Three-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM
This 2 HP, 145T frame, three-phase general purpose motor is designed for demanding industrial applications. With a nameplate RPM of 3490 and a voltage range of 230/460V AC, it provides reliable power for heavy-duty machinery. The motor's totally enclosed fan cooled design and cast iron frame ensure durability and long lifespan. Suitable for use in continuous duty applications, it offers high efficiency and low maintenance. Ideal for use in manufacturing, material handling, and other industrial settings, this motor meets CE, CSA, NOM, and UL standards for safety and performance. Its compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Industrial Conveyors
- Pumps and Water Treatment Systems
- Paper and Pulp Mills
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3490 rpm, Frame 145T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.12/2.56 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 3001-3600, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.30
- Package Height: 9.00
- Package Weight: 53.00
Product info last updated on April 6, 2026 3:36am UTC
Category: Motors
