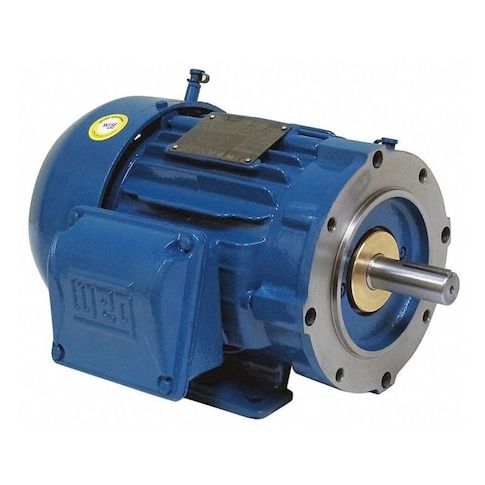

Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 575V AC Voltage, 1800 Nameplate RPM MPN:00118ET3H143TC-W22
Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 575V AC Voltage, 1800 Nameplate RPM
This 1 HP, 3-phase general purpose motor is designed for a wide range of applications, including industrial and commercial use. With its totally enclosed fan cooled design, it provides reliable operation in harsh environments. The motor's high efficiency and continuous duty rating make it ideal for applications that require consistent performance. Its compact 143TC frame makes it easy to integrate into existing systems. Suitable for use in factories, warehouses, and other industrial settings, this motor is a reliable choice for applications that require a high level of performance and durability.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1760 rpm, Frame 143TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.18 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 18.00
- Package Height: 19.00
- Package Weight: 94.80
Product info last updated on February 9, 2026 12:22pm UTC
Category: Motors
