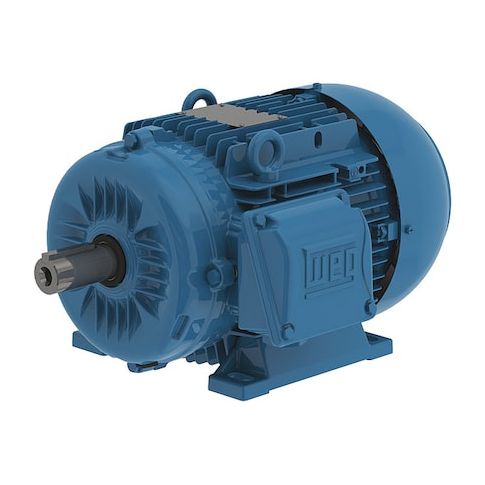

Metric Motor, 80, Rigid Base MPN:13984003
Metric Motor, 80, Rigid Base
This 1 HP, 3450 rpm motor from Weg is a reliable and efficient solution for various industrial applications. Suitable for continuous duty, it operates at a maximum ambient temperature of 40°C and features a rigid base motor mounting type for secure installation. The motor's totally enclosed fan cooled design and ball bearings ensure long-lasting performance and minimal maintenance. Its high efficiency of 81.5% and 1.25 service factor make it an excellent choice for applications requiring high power density, such as conveyor systems, pumps, and fans, in industries like manufacturing, logistics, and food processing.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled motor enclosure design
- Ball motor bearings
Top product applications:
- Pump drive
- Conveyor drive
- Fan drive
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, 0.75 kW, Nameplate RPM 3470 rpm, Frame 80, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.46 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 81.5 Percent, Continuous Duty, 3001-3600, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.20
- Package Width: 10.90
- Package Height: 8.10
- Package Weight: 25.91
Product info last updated on March 8, 2026 5:13pm UTC
Category: Motors
