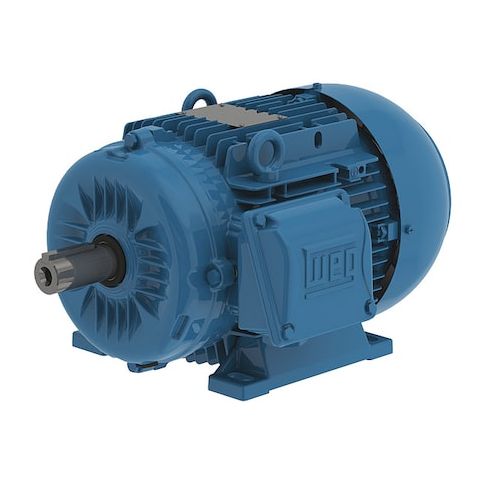

Three-Phase General Purpose Motor, 1 1/2 HP, 90S Frame, 460V AC Voltage, 1755 rpm Nameplate RPM MPN:13984004
Three-Phase General Purpose Motor, 1 1/2 HP, 90S Frame, 460V AC Voltage, 1755 rpm Nameplate RPM
This 1.5 HP three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing facilities, and commercial settings. Its totally enclosed fan cooled design provides reliable operation in harsh environments, while its aluminum frame and ball bearings ensure durability and long lifespan. With a nameplate RPM of 1755 and a high efficiency of 86.5%, this motor is ideal for continuous duty applications, such as conveyor systems, pumps, and fans. Its compact size and rigid base mounting make it easy to integrate into existing systems. Suitable for use in 460V AC environments.
Top product features:
- Three-phase operation
- Totally enclosed fan cooled motor enclosure design
- Ball motor bearings
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, 1.1 kW, Nameplate RPM 1755 rpm, Frame 90S, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.05 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 12.50
- Package Height: 9.20
- Package Weight: 39.16
Product info last updated on February 24, 2026 8:05am UTC
Category: Motors
