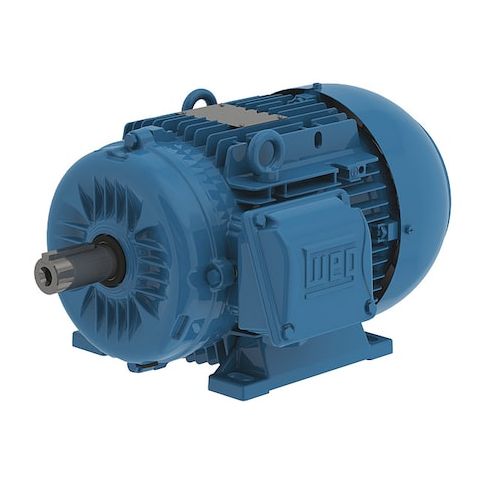

Three-Phase General Purpose Motor, 4 HP, 100L Frame, 460V AC Voltage, 1740 rpm Nameplate RPM MPN:13984023
Three-Phase General Purpose Motor, 4 HP, 100L Frame, 460V AC Voltage, 1740 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 4 HP, 3.0 kW, Nameplate RPM 1740 rpm, Frame 100L, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.33 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1701-1800, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 13.80
- Package Height: 10.70
- Package Weight: 77.00
Product info last updated on January 22, 2026 11:31am UTC
Category: Motors
