Three-Phase General Purpose Motor, 10 HP, 132M Frame, 460V AC Voltage, 1, 770 Nameplate RPM MPN:13984841
Three-Phase General Purpose Motor, 10 HP, 132M Frame, 460V AC Voltage, 1, 770 Nameplate RPM

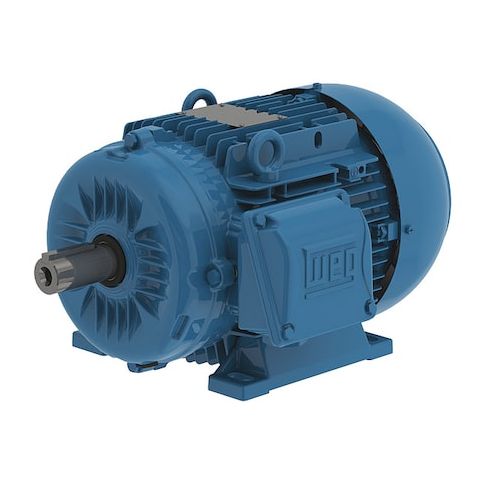

This 10 HP three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial and commercial use. Its totally enclosed fan cooled motor enclosure provides reliable operation in harsh environments, while its rigid base motor mounting type ensures stability and durability. With a nameplate RPM of 1,770 and a maximum ambient temperature of 40 degrees C, this motor is suitable for use in applications such as pumps, fans, and compressors. Its high efficiency and continuous duty capability make it an ideal choice for demanding industrial applications.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled design for reduced noise and increased reliability
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Pumps
- Industrial machinery
- Fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, 7.5 kW, Nameplate RPM 1,770, Frame 132M, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.80
- Package Width: 15.50
- Package Height: 14.00
- Package Weight: 159.00
Product info last updated on February 4, 2026 12:31am UTC
Category: Motors
