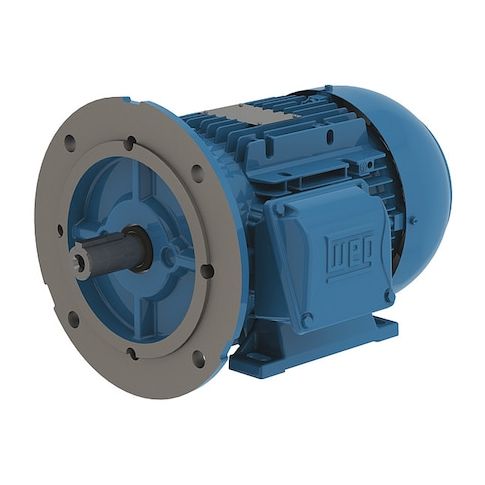

Three-Phase General Purpose Motor, 7 1/2 HP, 132S Frame, 460V AC Voltage, 3545 rpm Nameplate RPM MPN:13984840
Three-Phase General Purpose Motor, 7 1/2 HP, 132S Frame, 460V AC Voltage, 3545 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, 5.5 kW, Nameplate RPM 3545 rpm, Frame 132S, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 8.97 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 23.00
- Package Height: 14.00
- Package Weight: 135.00
Product info last updated on February 8, 2026 10:21am UTC
Category: Motors
