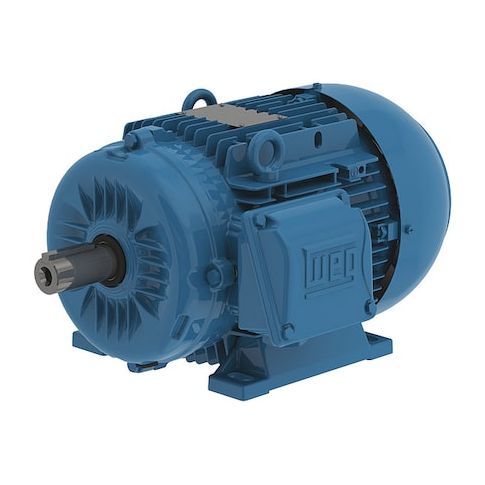

Three-Phase General Purpose Motor, 3 HP, 132S Frame, 460V AC Voltage, 870 rpm Nameplate RPM MPN:13984666
Three-Phase General Purpose Motor, 3 HP, 132S Frame, 460V AC Voltage, 870 rpm Nameplate RPM
This 3 HP, 132S frame, three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing, and commercial use. Its totally enclosed fan cooled design provides reliable performance in harsh environments, while its rigid base motor mounting ensures stable operation. With a high efficiency rating of 85.5%, this motor helps reduce energy costs and minimize environmental impact. Suitable for continuous duty, it can handle demanding tasks with ease. Its compact size and lightweight design make it easy to install and maintain, making it an ideal choice for various applications requiring a reliable and efficient motor solution.
Top product features:
- Three-phase operation provides efficient power distribution.
- Totally enclosed fan cooled motor enclosure design helps maintain a safe and reliable operating environment.
- Ball motor bearings reduce wear and tear on the motor, increasing its lifespan.
Top product applications:
- Industrial pump systems
- Centrifugal compressors
- Conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, 2.2 kW, Nameplate RPM 870 rpm, Frame 132S, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.75 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 0-1000, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.70
- Package Width: 18.90
- Package Height: 13.80
- Package Weight: 145.00
Product info last updated on March 20, 2026 8:09pm UTC
Category: Motors
