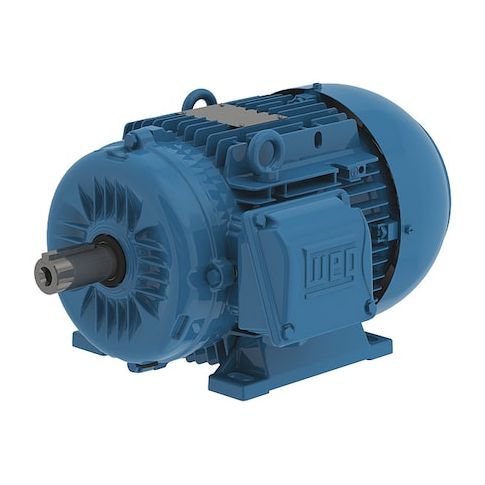

Three-Phase General Purpose Motor, 1 HP, 90S Frame, 460V AC Voltage, 1, 155 Nameplate RPM MPN:13984000
Three-Phase General Purpose Motor, 1 HP, 90S Frame, 460V AC Voltage, 1, 155 Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, 0.75 kW, Nameplate RPM 1,155, Frame 90S, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.68 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1,101-1,200, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 12.60
- Package Height: 9.50
- Package Weight: 51.00
Product info last updated on March 20, 2026 8:05pm UTC
Category: Motors
