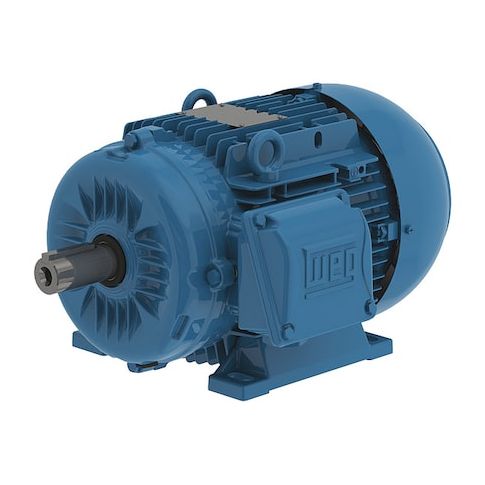

Three-Phase General Purpose Motor, 4 HP, 100L Frame, 460V AC Voltage, 3515 rpm Nameplate RPM MPN:13984024
Three-Phase General Purpose Motor, 4 HP, 100L Frame, 460V AC Voltage, 3515 rpm Nameplate RPM
This 4 HP three-phase general purpose motor is designed for a wide range of applications, including industrial processing, manufacturing, and commercial use. With a high efficiency rating of 88.5%, it helps reduce energy costs and minimize environmental impact. The totally enclosed fan cooled design and rigid base motor mounting ensure reliable operation in demanding conditions. Suitable for continuous duty, this motor is ideal for applications such as conveyor systems, pumps, and fans. Its compact 100L frame and 460V AC voltage make it a versatile solution for various industries, including food processing, textiles, and chemical production.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable heat dissipation
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps
- Fans
- Conveyor Systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 4 HP, 3.0 kW, Nameplate RPM 3515 rpm, Frame 100L, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.01 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.70
- Package Width: 13.60
- Package Height: 11.00
- Package Weight: 65.00
