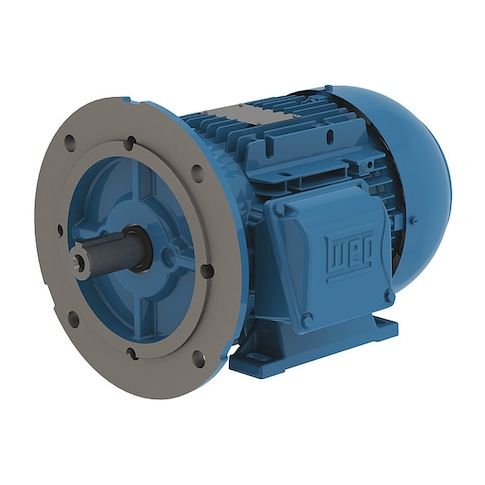

Three-Phase General Purpose Motor, 3 HP, 90L Frame, 460V AC Voltage, 3480 rpm Nameplate RPM MPN:13984021
Three-Phase General Purpose Motor, 3 HP, 90L Frame, 460V AC Voltage, 3480 rpm Nameplate RPM
This Weg 3 HP three-phase general purpose motor is designed for heavy-duty applications requiring high power and reliability. Suitable for use in industrial settings, it features a totally enclosed fan-cooled motor enclosure and rigid base for stable operation. With a nameplate RPM of 3480, it provides efficient performance in continuous duty applications. The motor's 86.5% nominal efficiency and 1.25 service factor ensure optimal performance in a variety of industries, including manufacturing, oil and gas, and material handling. Its compact 90L frame makes it ideal for space-constrained areas, providing a reliable solution for demanding operations.
Top product features:
- Three-Phase General Purpose Motor, Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings for Smooth and Quiet Operation
- Continuous Duty Capability for Prolonged Use
Top product applications:
- Industrial Automation Systems
- High-Efficiency Pumping Systems
- Large-Scale Manufacturing Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, 2.2 kW, Nameplate RPM 3480 rpm, Frame 90L, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.85 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.30
- Package Width: 13.20
- Package Height: 10.70
- Package Weight: 48.18
Product info last updated on February 22, 2026 5:52am UTC
Category: Motors
