Three-Phase Metric Motor, 1 HP, 90S/L Frame, 460V AC Voltage, 1760 rpm Nameplate RPM MPN:13523076
Three-Phase Metric Motor, 1 HP, 90S/L Frame, 460V AC Voltage, 1760 rpm Nameplate RPM

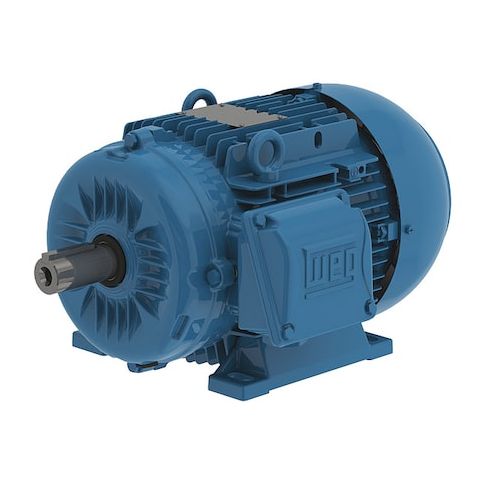

The Weg Three-Phase Metric Motor is a reliable and efficient solution for various industrial applications. Its 1 HP rating and 1760 rpm nameplate speed make it suitable for a range of uses, from pumping and conveying to material handling and machine tools. The motor's totally enclosed fan-cooled design and aluminum frame ensure durability and heat dissipation, while its 85% nominal efficiency minimizes energy consumption. With a rigid base mounting type and ball bearings, this motor provides stable operation and long lifespan. Ideal for continuous duty applications, it's an excellent choice for industries requiring high-performance and reliability.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Three-Phase AC Voltage Capability
- Ball Motor Bearings for Smooth Operation
Top product applications:
- Pumps and fans in industrial settings
- Conveyor systems in manufacturing facilities
- Power tools and machinery in construction and mining operations
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, 0.75 kW, Nameplate RPM 1760 rpm, Frame 90S/L, Voltage 460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85 Percent, Continuous Duty, 1701-1800, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 12.10
- Package Height: 8.90
- Package Weight: 37.35
Product info last updated on January 28, 2026 7:44pm UTC
Category: Motors
