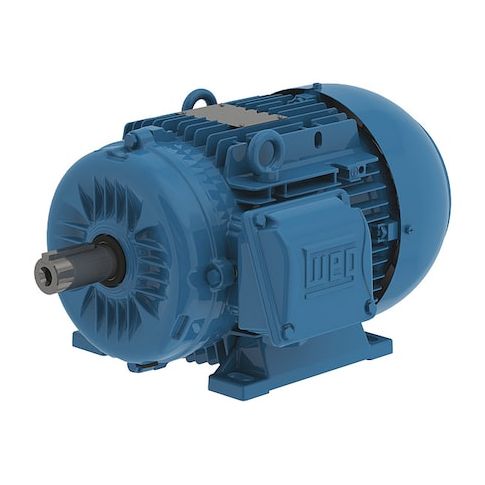

Three-Phase Metric Motor, 7 1/2 HP, 160M Frame, 460V AC Voltage, 881 rpm Nameplate RPM MPN:11616109
Three-Phase Metric Motor, 7 1/2 HP, 160M Frame, 460V AC Voltage, 881 rpm Nameplate RPM
This 7 1/2 HP, three-phase metric motor is designed for demanding applications that require high performance and reliability. With a nameplate RPM of 881 and a nominal efficiency of 87.5%, it provides efficient power conversion in a range of industrial settings. Suitable for continuous duty, this motor is ideal for use in manufacturing, processing, and material handling facilities. Its totally enclosed fan-cooled design and cast iron frame ensure durability and protection from harsh environments. Additionally, its CW/CCW motor shaft rotation and ball bearings provide flexibility and long-lasting operation.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball bearings for smooth and quiet motor operation
Top product applications:
- Industrial manufacturing processes
- Pump and compressor drives
- Material handling and conveyor systems
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, 5.5 kW, Nameplate RPM 881 rpm, Frame 160M, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 11.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 0-1000, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.20
- Package Width: 15.80
- Package Height: 19.70
- Package Weight: 306.00
Product info last updated on March 9, 2026 5:09am UTC
Category: Motors
