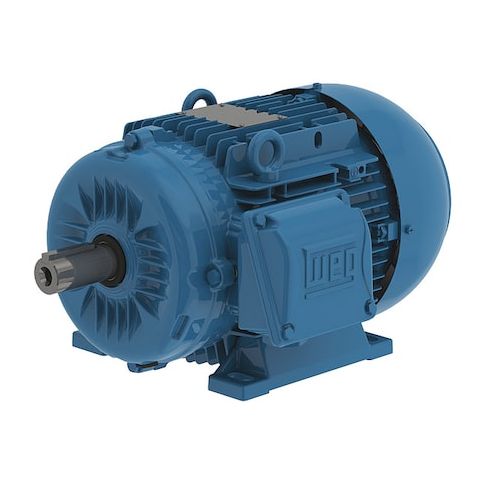

Three-Phase Metric Motor, 1 1/2 HP, 100L Frame, 460V AC Voltage, 1160 rpm Nameplate RPM MPN:12836725
Three-Phase Metric Motor, 1 1/2 HP, 100L Frame, 460V AC Voltage, 1160 rpm Nameplate RPM
This 1.5 HP three-phase metric motor is designed for heavy-duty applications, offering a robust and efficient solution for industrial and commercial use. With a totally enclosed fan-cooled motor enclosure and rigid base mounting, it provides reliable operation in harsh environments. The motor's high efficiency and continuous duty rating make it suitable for applications such as pumps, fans, and compressors. Its compact 100L frame and aluminum construction ensure easy integration and minimal space requirements. Ideal for use in manufacturing, processing, and other industrial settings, this motor delivers reliable performance and long-term cost savings.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Heavy industrial machinery
- Pumps and compressors
- Conveyor systems
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, 1.1 kW, Nameplate RPM 1160 rpm, Frame 100L, Voltage 460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 3.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 1,101-1,200, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 13.80
- Package Height: 10.70
- Package Weight: 76.00
Product info last updated on January 19, 2026 10:29pm UTC
Category: Motors
