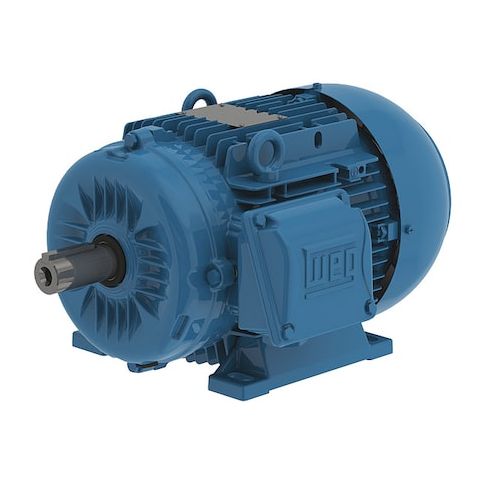

Three-Phase General Purpose Motor, 2 HP, 90S Frame, 460V AC Voltage, 3485 rpm Nameplate RPM MPN:13984007
Three-Phase General Purpose Motor, 2 HP, 90S Frame, 460V AC Voltage, 3485 rpm Nameplate RPM
This 2 HP, 90S frame three-phase general purpose motor is designed for reliable performance in a wide range of applications. Suitable for continuous duty, it operates at 3485 rpm and features a totally enclosed fan cooled motor enclosure for efficient heat dissipation. With a service factor of 1.25, it can handle varying loads and provides long motor life. Ideal for use in industrial settings, such as manufacturing and processing facilities, this motor is also suitable for use in commercial environments, including restaurants and retail stores, where reliability and efficiency are crucial.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed fan-cooled motor enclosure for reliable operation in various environments
- Ball motor bearings for smooth and durable rotation
Top product applications:
- Industrial Pumping Systems
- Manufacturing Machinery
- Water Treatment Plants
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, 1.1 kW, Nameplate RPM 3485 rpm, Frame 90S, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.69 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 12.60
- Package Height: 9.50
- Package Weight: 44.00
Product info last updated on March 1, 2026 5:16pm UTC
Category: Motors
