Three-Phase General Purpose Motor, 10 HP, 132S Frame, 460V AC Voltage, 3, 540 Nameplate RPM MPN:13984842
Three-Phase General Purpose Motor, 10 HP, 132S Frame, 460V AC Voltage, 3, 540 Nameplate RPM

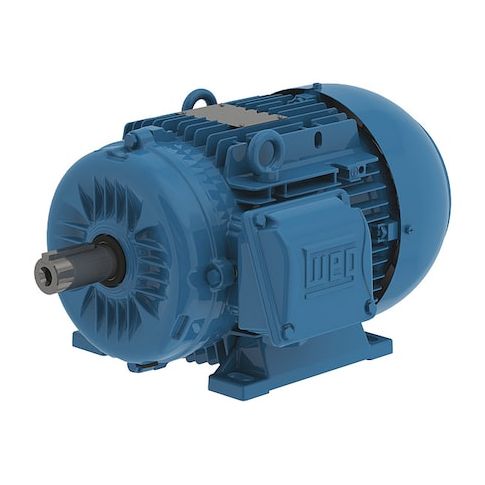

This 10 HP three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial and commercial use. With a totally enclosed fan cooled design, it provides reliable operation in harsh environments. The motor's high efficiency of 90.2% reduces energy costs and minimizes environmental impact. Its rigid base mounting type and CW/CCW shaft rotation make it easy to integrate into existing systems. Suitable for continuous duty, this motor is ideal for applications such as pumps, fans, and conveyor systems, and is available for immediate shipment with a lead time of just one day.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Continuous Duty Operation
Top product applications:
- Industrial Pumping Systems
- High-Torque Applications
- Material Handling Equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, 7.5 kW, Nameplate RPM 3,540, Frame 132S, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 12.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 15.50
- Package Height: 14.00
- Package Weight: 147.00
Product info last updated on February 22, 2026 11:32pm UTC
Category: Motors
