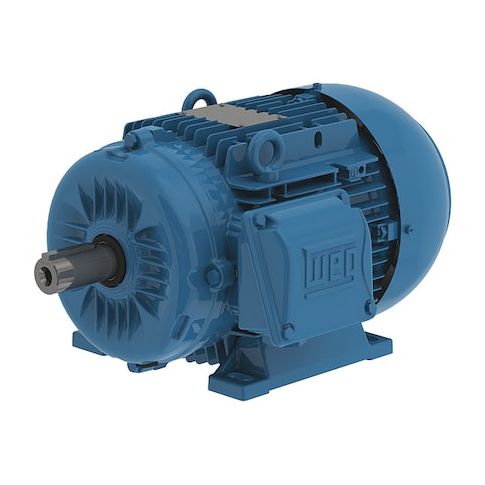

Three-Phase General Purpose Motor, 7 1/2 HP, 132S Frame, 460V AC Voltage, 1775 rpm Nameplate RPM MPN:13984838
Three-Phase General Purpose Motor, 7 1/2 HP, 132S Frame, 460V AC Voltage, 1775 rpm Nameplate RPM
This 7 1/2 HP three-phase general purpose motor is designed for heavy-duty applications and provides reliable performance in demanding environments. Suitable for use in industrial settings, it features a totally enclosed fan-cooled motor enclosure design and a rigid base motor mounting type for stable operation. With a high efficiency rating of 91.7%, this motor helps reduce energy costs and minimize environmental impact. Its compact size and CW/CCW motor shaft rotation make it easy to integrate into existing systems, while its aluminum frame ensures durability and resistance to corrosion. Ideal for applications such as pumps, fans, and conveyor systems.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pumps and Compressors
- Industrial Fans and Blowers
- Power Tools and Machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, 5.5 kW, Nameplate RPM 1775 rpm, Frame 132S, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 9.07 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.50
- Package Width: 16.00
- Package Height: 14.00
- Package Weight: 142.00
Product info last updated on March 3, 2026 5:11am UTC
Category: Motors
