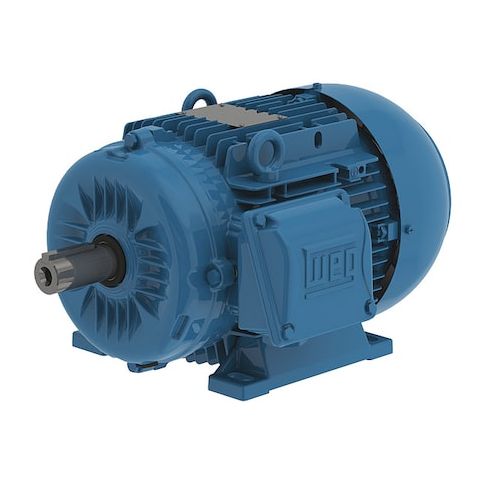

Three-Phase Metric Motor, 1 1/2 HP, 100L Frame, 230/460V AC Voltage, 1165 rpm Nameplate RPM MPN:13734168
Three-Phase Metric Motor, 1 1/2 HP, 100L Frame, 230/460V AC Voltage, 1165 rpm Nameplate RPM
Metric Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, 1.1 kW, Nameplate RPM 1165 rpm, Frame 100L, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 4.6/2.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 87.5 Percent, Continuous Duty, 1,101-1,200, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.20
- Package Width: 13.80
- Package Height: 10.70
- Package Weight: 80.00
Product info last updated on March 18, 2026 4:28pm UTC
Category: Motors
