Three-Phase General Purpose Motor, 3 HP, 90L Frame, 460V AC Voltage, 3480 rpm Nameplate RPM MPN:13984020

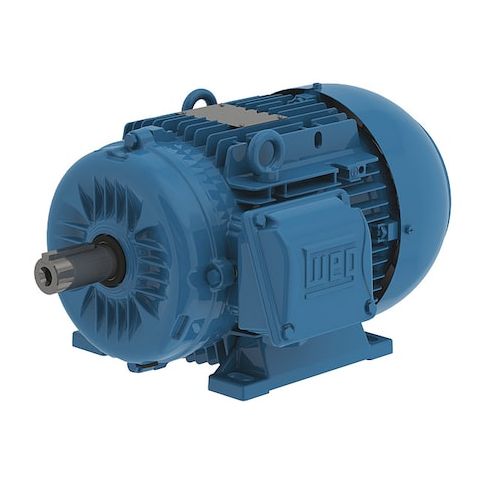

Three-Phase General Purpose Motor, 3 HP, 90L Frame, 460V AC Voltage, 3480 rpm Nameplate RPM
This 3 HP, 90L frame three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing facilities, and commercial settings. With a nameplate RPM of 3480 and a maximum ambient temperature of 40 degrees C, this motor is built to handle demanding environments. Its totally enclosed fan cooled design and rigid base motor mounting provide reliable operation and easy installation. Ideal for continuous duty applications, this motor offers a high efficiency of 86.5% and a service factor of 1.25, making it a cost-effective solution for industries requiring high-performance motors.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in various environments
- Ball motor bearings for smooth and durable motor operation
Top product applications:
- Pump drives
- Industrial machinery
- Textile machinery
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, 2.2 kW, Nameplate RPM 3480 rpm, Frame 90L, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.85 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 12.60
- Package Height: 9.50
- Package Weight: 49.00
Product info last updated on January 30, 2026 3:57am UTC
Category: Motors
