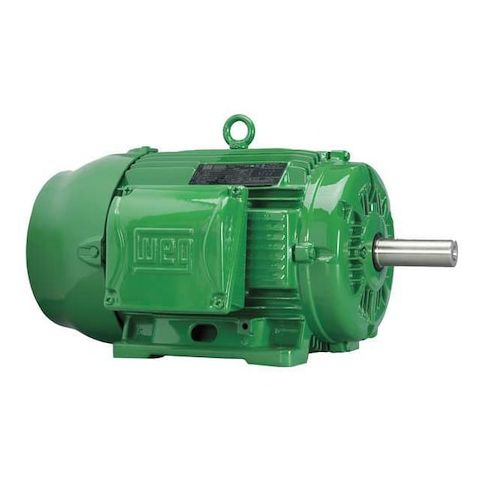

Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 3520 rpm Nameplate RPM MPN:00336EG3E182T-W22
Three-Phase General Purpose Motor, 3 HP, 182T Frame, 230/460V AC Voltage, 3520 rpm Nameplate RPM
This 3 HP three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing, and commercial use. Its 182T frame and totally enclosed fan cooled motor enclosure provide reliable operation in harsh environments. With a nameplate RPM of 3520 and a service factor of 1.25, this motor is suitable for continuous duty applications. Its high efficiency of 88.5% and ball bearings ensure long motor life. The motor's compact size and rigid base mounting make it easy to integrate into existing systems, making it an ideal choice for applications requiring a high level of performance and reliability.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for reduced friction and increased motor lifespan
Top product applications:
- Conveyor System
- Pumps and Compressors
- Machine Tools
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 3520 rpm, Frame 182T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.34/3.67 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 88.5 Percent, Continuous Duty, 3001-3600, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.50
- Package Height: 12.50
- Package Weight: 100.00
Product info last updated on March 12, 2026 4:37am UTC
Category: Motors
