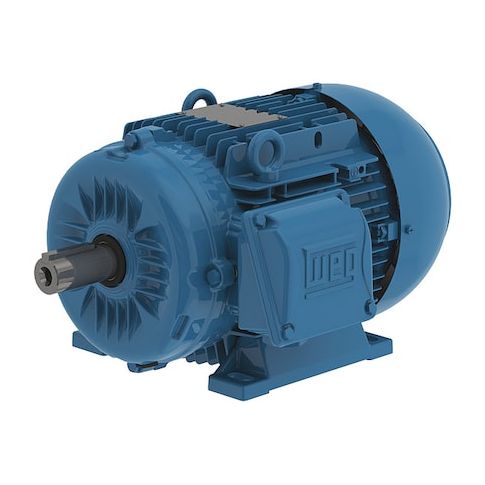

Metric Motor, 3 HP, 1175 rpm, Frame 132S MPN:13984829
Metric Motor, 3 HP, 1175 rpm, Frame 132S
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, 2.2 kW, Nameplate RPM 1175 rpm, Frame 132S, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.41 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, IEC34, IEC79
Additional Information
- Country of Origin: BR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.70
- Package Width: 18.90
- Package Height: 13.80
- Package Weight: 136.00
Product info last updated on March 3, 2026 5:08pm UTC
Category: Motors
