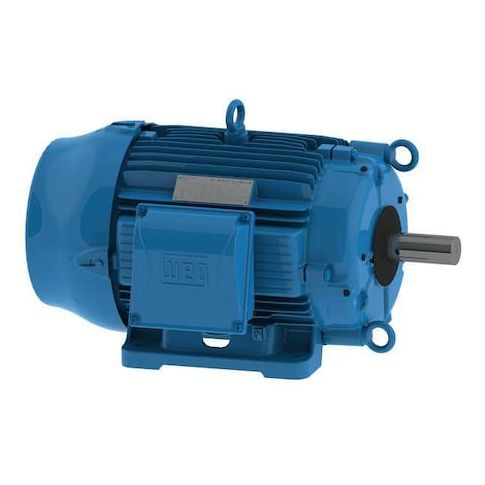

Cooling Tower Motor, Three Phase, 1 1/2 HP, 1, 755 Nameplate RPM, 230/460V AC, 143/5T Frame MPN:00158ET3ECT145TF1-W2
Cooling Tower Motor, Three Phase, 1 1/2 HP, 1, 755 Nameplate RPM, 230/460V AC, 143/5T Frame
This 1.5 HP three-phase cooling tower motor is designed for high-performance applications in industrial and commercial settings. Its 1,755 RPM nameplate speed and 143-5T frame ensure efficient operation in a range of cooling tower configurations. The totally enclosed fan-cooled design and rigid base mounting provide reliable and quiet operation, while the cast iron frame and ball bearings ensure durability and long motor life. Suitable for applications in hot and humid environments, this motor is ideal for use in cooling towers, HVAC systems, and industrial processes where high airflow and cooling capacity are required.
Top product features:
- Totally Enclosed Fan Cooled design provides protection from dust and moisture
- Ball bearings ensure smooth and quiet motor operation
- Cast Iron frame provides durability and resistance to wear and tear
Top product applications:
- Cooling towers in industrial and commercial buildings
- Air handling units for HVAC systems
- Industrial process cooling systems for manufacturing facilities
Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 1 1/2 hp HP, 1,755 RPM Nameplate RPM, 143-5T Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 4.0/2.0 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position All Angle, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.25 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 7/8 in, Shaft Length 2 1/4 in, Length Less Shaft 11 1/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 12.70
- Package Height: 9.70
- Package Weight: 51.35
Product info last updated on March 21, 2026 12:14am UTC
Category: Motors
